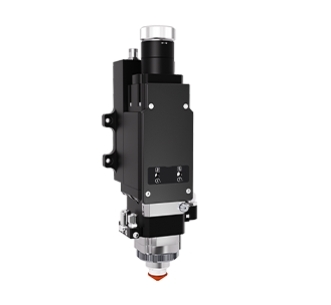

Laser Cutting Head BLT310 for Precision Cutting Applications
Specifications
Power Range:≤4kW
Fiber Interface:QBH、EOC
Focal Distance:150、200
Laser Wavelength:1030~1090
Weight:4.5kg
Product Description
BLT 310 are quite cost-effective smart cutting heads designed for mediumand low power laser cutting. Being impact and lightweight, it still integratesmultiple sets of intelligent sensors, which ensure real-time closed-loopmonitoring to give rapid diagnosis and instant warning.
Product Specifications
| Cutting head | BLT310 |
| Laser Wavelength | 1030-1090mm |
| Laser Power | <4kw |
| Fiber Interface | QBH/EOC |
| Spot Magnification | M=1.5/2.0 |
| Max Focus Adjustment Range | ±50mm |
| NA | Max 0.13 at Fc100 |
| Centering Adjustment Range | ±1.5mm |
| Focus Acceleration | 7.5m/s² |
| Cutting Gas Interface | ø10,maximum25bar(2.5Mpa) |
| NozzleCoolingGasConnection: | ø6,maximum5bar(0.5Mpa) |
| WaterCoolingInterface: | ø8,maximum5bar(0.5Mpa),minimumflow2.0l/min |
| OperatingTemperature: | 5~55℃ |
Product Details
Pressure sensor
One-click pressure calibration ensures continuity of quality. Gas pressure detection before turning on laser helps to prevent windows breakdown caused by insufficient pressure.
